The Definitive Guide to the Refurbished Vendo 721 HVV Soda Machine

Table of Contents

1. Introduction: The Legendary Platform

2. Specifications & Design: Anatomy of a Workhorse

3. The HVV Mechanism: Vertical Stack Technology Explained

4. Benefits of the Refurbished Vendo 721 HVV

5. Ideal Locations for Maximum Performance

6. Pre-Installation Planning & Site Requirements

7. Step-by-Step Installation & Leveling Guide

8. Programming & Setup for Modern Operations

9. Loading Techniques & Product Mix Optimization

10. Preventative Maintenance: A Proactive Schedule

11. Troubleshooting Common Vendo 721 HVV Issues

12. Modernization Upgrades: Cashless, Telemetry & Energy Efficiency

13. The Refurbishment Process: What “Refurbished” Truly Means

14. Cost Analysis & ROI: The Financial Powerhouse

15. Frequently Asked Questions (FAQ)

16. Conclusion: The Strategic Choice for Volume Vending

---

1. Introduction: The Legendary Platform

In the landscape of high-volume beverage vending, the Vendo 721 HVV occupies a hallowed space. More than just a machine, it is a platform engineered for relentless performance in the most demanding environments. The letters “HVV” stand for High Volume Vendor, a promise it has faithfully delivered on for decades in factories, distribution centers, and stadiums across the globe. Characterized by its massive capacity, military-grade durability, and the unique vertical stack (VS) delivery system, the Vendo 721 HVV was designed with one mission: to move an extraordinary volume of canned product with uncompromising reliability.

Today, the refurbished Vendo 721 HVV represents one of the most intelligent investments a vending operator can make. Choosing a professionally refurbished unit offers the legendary robustness of the original platform, renewed with modern components and backed by a warranty, all at a fraction of the cost of a new high-capacity machine. This guide from VendingMachines.com is the ultimate resource for understanding, deploying, and profiting from this iconic machine. We will dissect its engineering, detail the refurbishment process that breathes new life into it, and provide a masterclass in operation and maintenance to ensure your refurbished Vendo 721 HVV becomes a cornerstone of profitability for years to come.

2. Specifications & Design: Anatomy of a Workhorse

The Vendo 721 HVV is built on a scale and with a philosophy distinct from standard machines. Its specifications tell the story of a machine meant for industrial-duty cycles.

Physical Dimensions & Layout:

• Height: 79 inches

• Width: 42 inches

• Depth: 34 inches

• Weight: Approximately 650 lbs (empty)

• Capacity: The “721” model code is indicative of its scale, typically holding over 700 cans. In its most common 10-column configuration, a refurbished Vendo 721 HVV can hold 720-800 standard 12-oz cans. Some configurations can exceed 800.

• Vend Mechanism: Vertical Stack Vendor (VS) system. This is a column-based, motor-driven elevator system, fundamentally different from gravity-fed stack machines.

• Cooling System: A powerful, top-mounted forced-air refrigeration system. Cold air is distributed from the top, ensuring consistent cooling throughout the tall cabinet. It maintains a target temperature of 34-38°F.

• Construction: Exceptionally heavy-duty welded steel cabinet with a reinforced frame. The exterior is a textured, durable powder-coat finish. The design is purely functional, with a focus on internal capacity over external aesthetics.

• Power: 115V, 60Hz, 15-amp dedicated circuit. Its compressor and multiple motors demand robust, clean power.

Design Philosophy: Industrial Simplicity.
The Vendo 721 HVV foregoes glass fronts and merchandising lights. Its strength lies in its overbuilt mechanics and straightforward serviceability. Every component is accessible, heavy-duty, and designed for easy replacement. It’s a machine where form follows function to an extreme, resulting in unparalleled longevity.

3. The HVV Mechanism: Vertical Stack Technology Explained

The “Vertical Stack Vendor” system is the engineering heart that sets the Vendo 721 HVV apart. Unlike a Dixie Narco stack machine where cans drop by gravity, the HVV system actively lifts and pushes product to the delivery point.

The Vending Cycle Step-by-Step:

1. Loading & Stacking: Cans are loaded into deep, vertical columns from the top. They sit in a vertical queue.

2. Motor Activation: Upon selection and payment, a dedicated DC motor at the top of the selected column is activated.

3. Elevator Action: The motor turns a gear that drives a plastic “elevator board” or “lift platform” upward from the bottom of the column.

4. Product Ejection: This rising platform lifts the entire stack of cans. The top can in the column is pushed against a fixed ramp or “stripper” mechanism. This ramp guides the top can out of the column horizontally, while the elevator board continues to hold up the rest of the stack beneath it.

5. Delivery: The ejected can rolls down a delivery chute into the bin.

6. Reset: The motor reverses direction, lowering the elevator board back to the bottom of the column, ready to receive the next can that has shuffled down from the queue above.

Advantages of the VS System in a Vendo 721 HVV:

• Eliminates Column Jams from Minor Dents: Because the cans are pushed, not dropped, small imperfections are less likely to cause a jam. This is critical in high-volume, high-reliability settings.

• Gentler on Product: The controlled push is smoother than a sudden gravity drop, reducing the risk of shaken, fizzy cans.

• Consistent Vend Force: Regardless of how full or empty the column is, the motor provides the same force to eject the can. This eliminates “weak vends” from near-empty columns in gravity systems.

• Perfect for Deep Columns: Enables the incredibly deep columns that give the refurbished Vendo 721 HVV its massive capacity.

4. Benefits of the Refurbished Vendo 721 HVV

Opting for a professionally refurbished unit unlocks the full value proposition of this platform.

• Unmatched Capacity & Route Efficiency: With 700+ can capacity, a refurbished Vendo 721 HVV can often operate for two weeks or more between service visits in a very high-traffic location. This dramatically reduces labor costs per sale.

• Legendary Durability & Longevity: The original Vendo 721 HVV was built to last 20+ years. A quality refurbishment resets this clock, providing a machine that will serve for another decade or more with proper care.

• Superior Reliability in Demanding Environments: The VS system is less prone to jams from imperfect cans. The industrial construction withstands vibration, dust, and heavy use better than consumer-grade machines.

• Lower Total Cost of Ownership: The combination of a lower upfront cost (vs. new), reduced service frequency, and inexpensive, readily available parts leads to an exceptionally low cost per vend over the machine’s life.

• Modernized Performance: A good refurbishment includes MDB compatibility and often new motors and boards, giving you modern features in a proven chassis.

• Warranty & Peace of Mind: Unlike an “as-is” auction find, a refurbished Vendo 721 HVV from a reputable dealer comes with a warranty (typically 1 year on parts/labor), de-risking your investment.

• Fast ROI: The high volume and low acquisition cost enable this machine to pay for itself very quickly in the right location.

5. Ideal Locations for Maximum Performance

The refurbished Vendo 721 HVV is a specialist tool for specific, high-demand scenarios.

• Large Manufacturing Plants (500+ employees): The quintessential home. Shifts of workers create massive, predictable demand for cold canned soda.

• Distribution Warehouses & Logistics Centers: Similar profile to factories, with a high density of workers in a large facility.

• Automotive Assembly Plants: Extreme high-volume environments where downtime is unacceptable.

• University Stadiums or Large Sporting Venues (Service Areas): While not for public-facing concourses, they are perfect for concession stands or back-of-house areas to serve staff and vendors.

• Large Military Bases or Shipyards: Environments that value ruggedness and capacity.

• Bottling Plants or Food Processing Facilities: Can meet the internal demand of the workforce.

Location Warning: The refurbished Vendo 721 HVV is overkill and aesthetically mismatched for small offices, retail lobbies, or any location where bottled drinks or variety are required. It is a cannon, not a scalpel.

6. Pre-Installation Planning & Site Requirements

Success starts before delivery. Proper site prep prevents countless problems.

• Floor Strength & Levelness: Ensure the floor is concrete or similarly solid. It must be level within 1/4 inch over the machine’s footprint.

• Space & Clearance: Allow a minimum of 6 inches on all sides, especially at the top and back. The refurbished Vendo 721 HVV generates significant heat from its condenser; restricted airflow is a death sentence for the compressor.

• Electrical: A dedicated 115V, 15-amp outlet is mandatory. The compressor startup surge and multiple motors can trip shared circuits. Verify outlet polarity and grounding.

• Ambient Temperature: Avoid installing in direct sunlight or next to industrial ovens/heaters. High ambient temperatures force the cooling system to work harder, increasing energy costs and wear.

• Accessibility: Ensure doors and hallways are wide enough for delivery (machine is ~42″ wide on a pallet).

7. Step-by-Step Installation & Leveling Guide

Delivery Day Protocol:

1. Inspect Upon Delivery: Note any shipping damage on the carrier’s bill of lading before signing.

2. Position with Care: Use a pallet jack. Position exactly where it will live.

3. The Sacred Ritual: Leveling. This is the most critical step for a refurbished Vendo 721 HVV. Use a precision machinist’s level or a high-quality 4-foot carpenter’s level.

   • Place the level side-to-side on the top frame rail (not the plastic or door).

   • Adjust the front leveling legs until perfect.

   • Place the level front-to-back. Adjust again.

   • Re-check side-to-side. Iterate until perfectly level in both planes.

4. Power Up & Initialization: Plug into the dedicated outlet. The control board will go through a boot sequence. Listen for the compressor and fans to engage.

5. The 24-Hour Cooldown Rule: DO NOT LOAD PRODUCT. Allow the empty refurbished Vendo 721 HVV to run for a full 24 hours. This allows the refrigeration system to stabilize and pull the empty cabinet down to its proper temperature (34-38°F). Loading warm cans into a warm cabinet causes condensation, thermal shock, and poor initial cooling performance.

8. Programming & Setup for Modern Operations

Assuming a modern MDB refurbishment, setup is straightforward.

Accessing Programming: Unlock the main door. The keypad and display are inside. Press and hold the “Program” or “Mode” button.

Essential Settings:

1. Column Pricing: Set individual prices for each of the 10 columns. Given the volume, even a $0.05 price differential can have a significant weekly revenue impact.

2. Motor Timing: Some boards allow adjustment of motor run time. This is usually pre-set correctly during refurbishment but may need fine-tuning if cans are over- or under-ejecting.

3. Date & Time: Critical for DEX data accuracy.

4. Cashless Integration: If a card reader is pre-installed, follow its specific activation guide (often involving a call or web portal).

5. Test Mode: Systematically test each column’s motor and vend mechanism. This verifies installation and clears any transit-induced issues.

9. Loading Techniques & Product Mix Optimization

Loading Procedure:

1. Open the top access panel.

2. Identify the column you are loading (usually labeled 1-10 or A-J).

3. Pour cans directly into the column. They will stack deeply.

4. Key Tip: Load from the same case. Mixing different can types (e.g., sleek Red Bull cans with standard soda cans) in one column can sometimes cause alignment issues in the VS mechanism.

Product Mix Strategy for a Vendo 721 HVV:

• The 80/20 Rule is Paramount: In a 10-column machine, 2 columns (20%) will likely generate 80% of sales. Identify these through DEX data—typically Coke and Diet Coke.

• Allocation: Assign 2-3 columns to your top seller, 1-2 to your second. Use single columns for other popular brands (Pepsi, Mountain Dew, Dr Pepper, Sprite). Always include one column for a non-cola option like lemon-lime soda or bottled water (if using a can water product).

• Price Anchoring: You can have a “value column” with a lower-priced generic soda to cater to all price sensitivities, but in a captive, high-volume factory, brand loyalty often overrides small price differences.

10. Preventative Maintenance: A Proactive Schedule

A disciplined maintenance routine is the key to realizing the 20-year lifespan of a refurbished Vendo 721 HVV.(Refurbished Vendo 721 HVV Soda Machine)

Weekly/Service Visit:

• Collect cash and DEX data.

• Visually inspect for error codes on the display.

• Listen for any abnormal motor sounds (grinding, whining) during vends.

Monthly:

• Wipe down exterior.

• Check door gaskets for seal integrity.

Quarterly (Non-Negotiable):

• Condenser Coil Cleaning: Locate the condenser (usually at the rear). Remove the protective grille. Use a fin comb and coil brush followed by compressed air or a vacuum to remove all debris. This is the #1 determinant of compressor life.

• Inspect Evaporator Fan: Ensure the fan inside the top of the cabinet is spinning freely and blowing strong cold air.(Refurbished Vendo 721 HVV Soda Machine)

Semi-Annually:

• Lubricate Moving Parts: Apply a tiny amount of food-grade silicone spray to the delivery chute flap and any visible guide rails for the elevator boards. Never use grease or WD-40.

• Check Drain Line: Ensure the condensate drain line from the evaporator pan is clear to prevent internal water leaks.

Annually:

• Comprehensive Inspection: Check electrical connections for tightness. Inspect motor harnesses for wear. Verify all column motors are operating smoothly in test mode. Consider a professional amp-draw test on the compressor to assess health.(Refurbished Vendo 721 HVV Soda Machine)

11. Troubleshooting Common Vendo 721 HVV Issues

• Motor Runs But Can Doesn’t Eject (“Empty Column” Error):

  • Cause: Worn or broken “elevator board” (lift platform). The plastic teeth that engage the drive gear can strip.

  • Fix: Replace the elevator board for that column. A common repair with inexpensive parts.

• Can Jams Partway Out of Column:

  • Cause: Misaligned or damaged “stripper” ramp that guides the can out.

  • Fix: Open the column access panel and inspect the ramp. Clear any obstruction. Realign or replace the ramp.(Refurbished Vendo 721 HVV Soda Machine)

• Machine is Noisy During Vend (Loud Grinding):

  • Cause: Failing column motor or severely stripped elevator board gear.

  • Fix: Isolate the column. Replace the motor and/or elevator board as a set.

• Warm Soda / Inadequate Cooling:

  • Cause 1: Dirty condenser coils.

  • Cause 2: Failed evaporator fan motor.

  • Cause 3: Low refrigerant charge (less common post-refurbishment).

  • Fix: Clean coils first. Then listen for the internal fan. Refrigerant issues require a certified technician.

• Payment Accepted, Then Immediate Refund:

  • Cause: The control board received a “vend successful” signal too quickly or not at all, indicating a suspected motor fault or switch error.

  • Fix: Check the “vend sensor” micro-switch for that column to ensure it’s being actuated properly when the can is ejected. Test the column motor.

12. Modernization Upgrades: Cashless, Telemetry & Energy Efficiency

Even a refurbished Vendo 721 HVV can be enhanced for the modern era.

1. MDB Compliance: Ensure your refurbishment included a modern MDB board. This is the gateway to all other upgrades.

2. Cashless Vending System: In industrial settings, many workers may not carry cash. A rugged card reader (e.g., from Cantaloupe or Nayax) can capture these sales, often increasing total revenue by 15-25%.

3. Cellular Telemetry: This is a game-changer for route efficiency. Know sales in real-time, receive alerts for temperature excursions or power failures, and know exactly when your refurbished Vendo 721 HVV is nearing empty—transforming service from a schedule to a demand-based model.

4. Energy Management Controller: Devices like the eSight or VenDen Energy Guard are perfect for machines in facilities closed on weekends. They cycle the compressor and lights during off-hours, reducing energy consumption by 30-40% with no impact on product temperature during operating hours.(Refurbished Vendo 721 HVV Soda MachineRefurbished Vendo 721 HVV Soda Machine)

13. The Refurbishment Process: What “Refurbished” Truly Means

A high-quality refurbishment by a specialist is a comprehensive rebirth, not a cosmetic touch-up.

Stages of a Professional Vendo 721 HVV Refurbishment:

1. Complete Disassembly & Evaluation: Machine is stripped to the frame. Refrigeration system, every column mechanism, and the control board are tested.

2. Cabinet Restoration: Rust remediation, sandblasting, and repainting with industrial-grade enamel.

3. Mechanical Overhaul: All column motors are tested and replaced if out of spec. Elevator boards and stripper ramps are replaced. The vend sensor switches are renewed.

4. Refrigeration Service: Condenser and evaporator coils are chemically cleaned. Compressor is tested for amp draw and efficiency; replaced if questionable. System is evacuated, recharged with fresh R-134a refrigerant, and leak-tested.

5. Electronic Modernization: Old control board is replaced with a new, multi-drop bus (MDB) compatible board. New keypad and display installed.

6. Payment System Prep: New harnesses installed for bill validator and coin mech. Machine is ready for modern payment peripherals.

7. Reassembly & Testing: Machine is rebuilt. Each column is tested for 50+ consecutive vends. Cooling performance is verified over a 48-hour period. Final cosmetic inspection.

14. Cost Analysis & ROI: The Financial Powerhouse

The refurbished Vendo 721 HVV is an ROI-generating engine.

Sample Investment:

• Professionally Refurbished Vendo 721 HVV: $2,800 – $3,500

• New MDB Bill Validator & Coin Mech: $500

• Total Capital Outlay: ~$3,500

ROI Scenario (Large Manufacturing Plant):

• Average Sale Price: $1.75 (premium for cold can in industrial setting)

• Weekly Sales Volume: 500 cans (moderate for this machine)

• Weekly Gross Revenue: 500 x $1.75 = $875

• Weekly Costs: Product Cost (30%): $262. Location Commission (15%): $131. Estimated Misc/Truck (10%): $88. Total Cost: $481.

• Weekly Net Profit: $875 – $481 = $394

• Simple Payback Period: $3,500 / $394 = Approximately 9 weeks.

This model shows a refurbished Vendo 721 HVV paying for itself in just over two months and generating over $20,000 in annual net profit thereafter. This exceptional return is why this platform remains in such high demand.

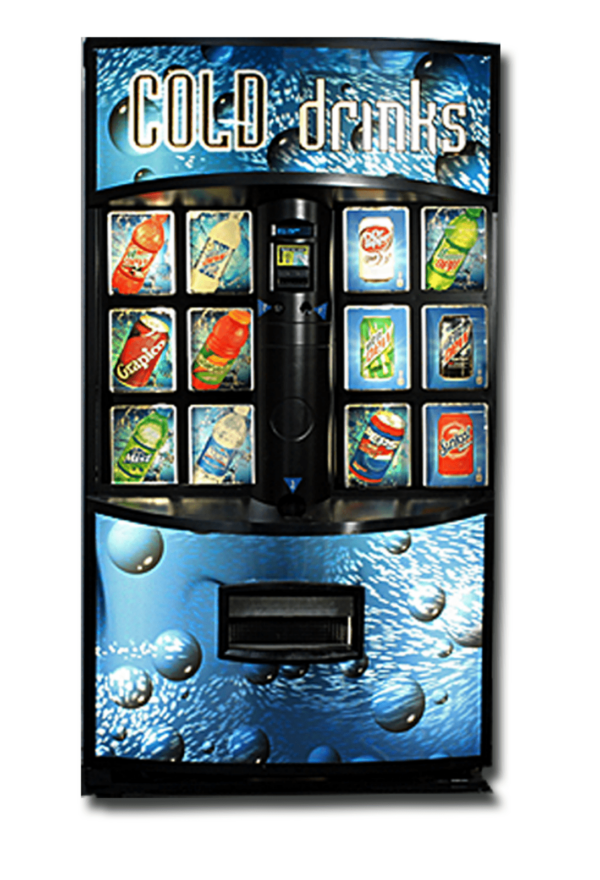

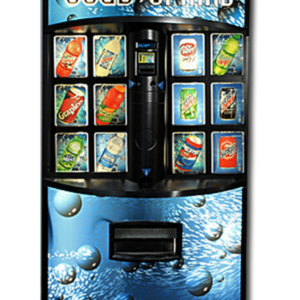

Refurbished Vendo 721 HVV Soda Machine

Refurbished Vendo 721 HVV Soda Machine

Refurbished Vendo 721 HVV Soda Machine

Refurbished Vendo 721 HVV Soda Machine

15. Frequently Asked Questions (FAQ)

Q: Can the Vendo 721 HVV vend bottles?
A: No. It is engineered specifically for standard 12-oz aluminum cans. The VS mechanism and column dimensions are not adaptable to bottles.

Q: How do I get sales data from the machine?
A: Through the DEX (Data Exchange) port on the MDB board. Use a handheld route device or connect a telemetry module for wireless data transmission.

Q: What’s the biggest operational mistake with this machine?
A: Neglecting the quarterly condenser coil cleaning. This leads to compressor overheating and premature, costly failure.

Q: Is it noisy?
A: It is an industrial machine. You will hear the compressor cycle and the distinct whir of the column motors during a vend. It’s not designed for a quiet library, but is acceptable in a factory break room.

Q: Where can I find parts?
A: Parts are extremely available. Specialized vending parts suppliers like Vendors Exchange (VE) and D&S Vending carry complete inventories of motors, elevator boards, and repair kits specifically for the Vendo 721 HVV.

16. Conclusion: The Strategic Choice for Volume Vending

The refurbished Vendo 721 HVV is not a mere piece of equipment; it is a strategic business decision. It represents the optimal convergence of proven engineering, renewed reliability, and exceptional financial mechanics. For the operator targeting the high-volume, canned-soda segment of the market, no other machine offers the same combination of capacity, durability, and low-cost operation.

Choosing a refurbished Vendo 721 HVV from a reputable dealer is an investment in certainty. You gain the performance of a legendary platform, the benefits of modern electronics, and the security of a warranty—all while preserving capital and accelerating your path to profitability. In the right location, it is not just a vendor; it is a relentless, automated profit center, built to withstand the test of time and volume.

For the serious operator who understands that in volume vending, reliability and capacity are king, the refurbished Vendo 721 HVV remains the undisputed sovereign. It is the smart, tough, and profitable choice for building a resilient vending business.
