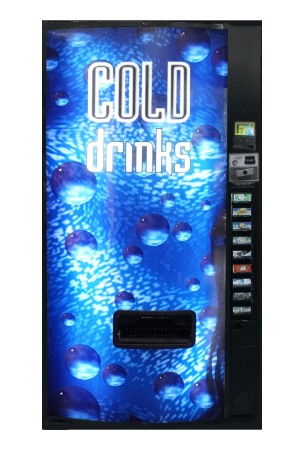

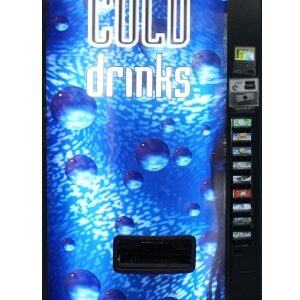

The Complete Guide to the Dixie Narco 501e Drink Machine

Table of Contents

1. Introduction: The Timeless Workhorse

2. Specifications & Design: Built for Simplicity and Durability

3. The Stack Mechanism: How the 501e Delivers Drinks

4. Model Variations & Generations of the 501e

5. Key Features & Operator Benefits

6. Ideal Locations for a Dixie Narco 501e

7. Installation: Critical Steps for Success

8. Loading, Pricing, and Basic Programming

9. Preventative Maintenance Schedule

10. Common Troubleshooting & Repairs

11. Upgrading Your 501e: MDB, Cashless, and Telemetry

12. The Refurbished Dixie Narco 501e Market

13. Cost Analysis & ROI: The Economics of a Classic

14. Frequently Asked Questions

15. Conclusion: The Unbeatable Value Proposition

---

1. Introduction: The Timeless Workhorse

In the world of vending, few machines achieve legendary status. The Dixie Narco 501e is one of them. For over three decades, this iconic can soda machine has been the backbone of countless vending routes, a steadfast presence in factories, warehouses, offices, and schools across the globe. Its simple, robust design and unparalleled reliability have earned it a reputation as the “Ford F-150” of the vending industry—a no-frills, hardworking tool that gets the job done, day in and day out.

Manufactured by Dixie-Narco, a company with a storied history in beverage vending, the Dixie Narco 501e represents the pinnacle of stack-style machine design. It was engineered for one primary purpose: to vend 12-ounce aluminum cans cold, reliably, and efficiently. While newer glass-front machines offer flashy displays and multi-width capabilities, the Dixie Narco 501e excels in its niche through sheer dependability and low total cost of ownership. For operators servicing blue-collar, high-volume locations, the Dixie Narco 501e remains the undisputed champion.

This definitive guide from VendingMachines.com will explore every facet of this industry titan. Whether you’re a seasoned operator managing a fleet of these machines, a new entrepreneur looking for a cost-effective entry into the business, or a location manager seeking a trouble-free amenity, understanding the Dixie Narco 501e is essential. We’ll cover its operation, maintenance, upgrades, and the compelling financial logic that keeps it in high demand decades after its introduction.

2. Specifications & Design: Built for Simplicity and Durability

The Dixie Narco 501e is a masterpiece of functional design. Every element is optimized for its core task, resulting in a machine that is both tough and easy to service.

Physical Dimensions & Layout:

• Height: 72 inches

• Width: 38.5 inches

• Depth: 34.5 inches

• Weight: Approximately 525 lbs (empty)

• Capacity: The name “501e” is derived from its standard configuration: 5 selections (columns) of soda, typically holding over 500 cans (hence “501”). Exact capacity depends on shelf configuration but generally ranges from 500-540 12-oz cans.

• Vend Mechanism: Gravity-fed stack system. Cans are loaded from the top and rest on serpentine shelves. A solenoid releases the bottom can to vend.

• Cooling System: A self-contained, forced-air refrigeration system with a rear-mounted evaporator and condenser. It’s designed to cool efficiently and maintain temperatures between 34-38°F.

• Construction: Heavy-gauge welded steel cabinet with a durable painted finish. The front features a simple, durable selection panel and a delivery door. The cabinet is fully insulated.

• Power: Standard 115V, 60Hz, 15-amp circuit.

Design Philosophy:
The Dixie Narco 501e embodies the K.I.S.S. principle (Keep It Simple, Stupid). Its closed cabinet protects the refrigeration system and simplifies cleaning. The internal layout provides easy access for loading and service. There are no complex spirals or moving trays—just a direct, mechanical drop. This simplicity is the root of its legendary reliability.

3. The Stack Mechanism: How the 501e Delivers Drinks

At the core of every Dixie Narco 501e is its elegantly simple stack-and-drop mechanism. Understanding this is key to proper operation and troubleshooting.

The Vending Cycle:

1. Stacking: Cans are loaded into vertical columns from the top service door. They slide down and stack neatly on a curved, serpentine metal shelf. This shelf holds the weight of the stack and guides the bottom can into the “ready” position.

2. Selection: The customer presses a button corresponding to one of the five beverage selections.

3. Release: An electrical solenoid (a magnetic plunger) connected to a release gate is energized. The plunger pulls back, retracting a small metal stop that was holding the bottom can in place.

4. The Drop: With the stop removed, gravity takes over. The bottom can drops straight down through a chute and into the delivery bin.

5. Reset: The solenoid de-energizes, and a spring pushes the stop back into position, catching the next can in the stack, which has now slid forward into the ready position.

Why This System is So Reliable:

• Minimal Moving Parts: Only one primary moving part per column (the solenoid). Less to break.

• Gravity-Powered: No motors, gears, or belts to wear out in the vend cycle itself.

• Speed: The vend is almost instantaneous—a satisfying thunk that customers recognize and trust.

• Forgiving: The system can handle minor dents or irregularities in cans better than more precise spiral or tray systems.

4. Model Variations & Generations of the 501e

While visually similar, the Dixie Narco 501e evolved internally over its long production run. The most critical distinction involves its electronic control system.

• Pre-MDB (Multi-Drop Bus) Models (Older): These early Dixie Narco 501e machines used proprietary logic boards that communicated only with specific, now-obsolete coin mechs and bill validators (often referred to as “Logic Board” or “Satellite” style). Upgrading payment systems on these requires a full control board conversion.

• MDB Models (Newer/Current): The vast majority of Dixie Narco 501e machines in operation today are MDB-compatible. The MDB standard allows the machine’s main board to communicate with any modern, off-the-shelf bill validator and coin mech. This is a crucial feature for maintainability.

• “E” Series Refinements: The “e” in Dixie Narco 501e often signifies later production models with improvements like better energy efficiency, more diagnostic capabilities, and always MDB compatibility. You might also see references to 501e/8 or 501e/9, indicating specific board revisions.

Identifying Your Model:
The serial number label inside the machine will list the exact model (e.g., DN 501E-8). The easiest functional test is to check the connector for the bill validator. A large, multi-pin “Amp” connector indicates a pre-MDB machine. A smaller, standardized 8-pin or 12-pin connector indicates MDB.

5. Key Features & Operator Benefits

The Dixie Narco 501e is packed with operator-centric features that have cemented its popularity.

• Unrivaled Reliability & Uptime: This is the headline benefit. A properly maintained Dixie Narco 501e can operate for 15-20 years with minimal major repairs. This translates to consistent revenue and fewer emergency service calls.

• Exceptionally Low Maintenance: Beyond cleaning the condenser coils, there’s little routine maintenance required. Solenoids and shelves are simple, inexpensive parts.

• High Capacity & Reduced Service Frequency: Holding over 500 cans means a well-placed Dixie Narco 501e might only need servicing once every 1-2 weeks, optimizing route efficiency.

• Cold, Fast Vends: The efficient refrigeration system and simple drop mechanism ensure customers get a cold drink instantly, every time.

• Universal Parts Availability: Every single component for the Dixie Narco 501e, from shelves and solenoids to complete refrigeration systems, is readily available and affordable from multiple distributors. This eliminates downtime waiting for parts.

• Easy to Service & Load: The internal layout is spacious and logical. Replacing a solenoid or clearing a jam is a 5-minute task. Loading from the top is fast and ergonomic.

• Strong Physical Security: The all-steel, lockable cabinet is resistant to tampering and weather, making the Dixie Narco 501e suitable for both indoor and sheltered outdoor locations.

•

6. Ideal Locations for a Dixie Narco 501e

The Dixie Narco 501e is a machine for volume. It thrives in environments where demand for cold canned soda is high and consistent.

• Manufacturing Plants & Factories: The classic Dixie Narco 501e location. High employee counts, physical work, and limited break time create massive demand for cold, affordable soda.

• Warehouses & Distribution Centers: Similar profile to factories. These locations appreciate the machine’s durability and capacity.

• Auto Shops & Garages: The rugged environment is no problem for the Dixie Narco 501e.

• Truck Stops & Bus Garages: For drivers and mechanics.

• Large Office Buildings (Service/Operations Areas): While break rooms might get glass-front machines, the basement or loading dock area is perfect for a Dixie Narco 501e for maintenance and operations staff.

• Schools (Faculty Lounges, Athletics Areas): Can meet high demand in a cost-effective way.

• Construction Sites (in a sheltered trailer): Its toughness is an asset.

Location Mismatch: The Dixie Narco 501e is less ideal for low-traffic offices, lobbies, or locations demanding bottled water or premium beverages. It is a specialist for canned soda volume.::::Dixie Narco 501e Drink Machine::Dixie Narco 501e Drink Machine

7. Installation: Critical Steps for Success

A proper installation is the foundation for years of trouble-free operation.

1. Site Selection: Place on a solid, level floor. Ensure at least 4-6 inches of clearance on all sides, especially the back and top, for adequate airflow to the condenser.

2. Leveling is NON-NEGOTIABLE: This is the single most important step. Use a high-quality carpenter’s level on the top frame of the cabinet (not the plastic trim). Adjust the front leveling legs until the bubble is perfectly centered both front-to-back and side-to-side. An unlevel Dixie Narco 501e will cause cans to jam at the release gate.

3. Electrical: Plug into a dedicated 115V outlet. Avoid using extension cords.

4. The Cooling Cooldown Period: Once plugged in, allow the Dixie Narco 501e to run empty for a minimum of 4-6 hours, preferably overnight, before loading any product. This allows the refrigeration system to pull down the temperature of the empty cabinet. Loading warm cans into a warm machine causes excessive condensation, strains the compressor, and delays the time to first cold drink.:::Dixie Narco 501e Drink Machine::Dixie Narco 501e Drink Machine

5. Payment System Installation: Install your MDB bill validator and coin mech, ensuring the connectors are firmly seated.:::Dixie Narco 501e Drink Machine

8. Loading, Pricing, and Basic Programming

Loading the Machine:

• Open the top service door. You’ll see the five vertical columns.

• Simply drop cans into their respective columns. They will stack neatly on the shelves. There’s no need to orient them in a specific way.

• Pro Tip: When restocking, try to load from the same brand/type of cans to avoid mixing. A mixed column will still vend but can confuse inventory.:::Dixie Narco 501e Drink Machine

Basic MDB Programming:
Access the programming mode by unlocking the service door and pressing the programming button (usually near the control board).

• Setting Prices: Navigate to set prices for each of the five selections individually.

• Setting Date/Time: Essential for accurate DEX data tracking.

• Test Mode: Use this to manually fire each solenoid to ensure it’s working and to clear any initial jams after loading.

• Sales Data: You can view can counters for each selection to see sales volume.

DEX Data: The Dixie Narco 501e has a DEX port. Use a handheld route device or telemetry to download item-level sales data, which is invaluable for optimizing your product mix (e.g., “Selection #3 sells twice as much as #1”).:::Dixie Narco 501e Drink Machine

9. Preventative Maintenance Schedule

A little proactive care prevents almost all major issues with a Dixie Narco 501e.

Weekly/Per Service Visit:

• Wipe down the exterior and delivery bin area.

• Visually check for any error lights or stuck cans.

Monthly:

• Check the door gasket for a tight seal. A worn gasket makes the compressor work harder.

Quarterly (THE MOST IMPORTANT TASK):

• CLEAN THE CONDENSER COILS. Locate the condenser (usually behind a panel at the bottom rear of the machine). Use a condenser coil brush and a vacuum to remove all dust, lint, and grime. Dirty coils are the #1 cause of cooling failure and compressor death in a Dixie Narco 501e. Set a calendar reminder for this.:::Dixie Narco 501e Drink Machine

Semi-Annually:

• Inspect the evaporator fan inside the cabinet (behind the panel where the cold air blows). Ensure it’s spinning freely.

• Check the drain tube from the evaporator pan to ensure it’s not clogged (can cause water leakage inside).

• Lubricate the delivery bin lock mechanism with a tiny amount of food-grade silicone spray.

Annually:

• Consider a more thorough inspection: check solenoid operation, tighten any loose harness connections, and ensure the machine remains perfectly level.:::Dixie Narco 501e Drink Machine

10. Common Troubleshooting & Repairs

The Dixie Narco 501e has a short list of common, easily fixed problems.

• Can Jam / Won’t Drop:

  • Cause 1: Machine is not level. Fix: Re-level.

  • Cause 2: Damaged or bent serpentine shelf. Fix: Replace the shelf ($20-$40 part).

  • Cause 3: Weak or stuck solenoid. Fix: Replace the solenoid (a $15-$30 part, 5-minute job).

• Warm Soda / Poor Cooling:

  • Cause 1: Dirty condenser coils (90% of the time). Fix: Clean them.

  • Cause 2: Failed evaporator or condenser fan. Fix: Listen for fan operation. Replace if needed.

  • Cause 3: Low refrigerant or failing compressor. Fix: Requires a professional technician.

• Machine Takes Money, Makes a “Click,” but Doesn’t Vend:

  • Cause: Solenoid is clicking but the release gate is stuck or the shelf is bent. Fix: Inspect the release mechanism for the affected column. Free any obstruction. Likely a shelf or solenoid replacement.

• Payment System Errors:

  • Cause: Loose connection, dirty bill validator, or incorrect programming. Fix: Power down, reseat connectors. Clean validator with a cleaning card. Ensure prices are set above $0.00.:::Dixie Narco 501e Drink Machine

11. Upgrading Your 501e: MDB, Cashless, and Telemetry

Even an older Dixie Narco 501e can be brought into the modern age.

1. MDB Conversion Kit (For Pre-MDB Machines): If your machine has the old logic board, a conversion kit (new board and harness) is essential. Cost: $250-$400. This is a prerequisite for any other upgrade.

2. Cashless Vending System: Adding a credit/debit card reader is a game-changer. It plugs into the MDB port. In blue-collar locations, it captures sales from workers who don’t carry cash and can increase average sale value. Choose a robust model from a provider like Cantaloupe or Nayax.

3. Telemetry: Modern cashless devices include cellular telemetry, giving you real-time sales data, outage alerts (power loss, high temperature), and remote management capabilities for your Dixie Narco 501e.

4. Energy Saver Kits: Simple timers or more advanced devices like the VenDen Energy Guard can cycle the compressor off during long closed periods (e.g., nights and weekends), reducing energy costs by 30% or more without affecting product temperature.::Dixie Narco 501e Drink Machine

12. The Refurbished Dixie Narco 501e Market

Given its durability, the refurbished Dixie Narco 501e market is huge and represents incredible value.

• What is a Quality Refurbishment? It should include: complete disassembly/cleaning, repainting of the cabinet, replacement of all worn shelves and solenoids, thorough cleaning/replacement of the refrigeration system components (condenser, fans), installation of a new MDB board (if needed), and a full operational test.

• Warranty: Reputable sellers offer 6-month to 2-year warranties on refurbished Dixie Narco 501e machines.

• Price Point: A fully refurbished Dixie Narco 501e typically costs between $1,800 and $2,800, compared to $4,500+ for a new glass-front machine. This low entry cost is a massive advantage for ROI.:::Dixie Narco 501e Drink Machine

13. Cost Analysis & ROI: The Economics of a Classic

The Dixie Narco 501e excels in straightforward, high-margin volume.

Sample Investment:

• Refurbished Dixie Narco 501e: $2,300

• Basic MDB Bill/Coin Kit: $400

• Total Investment: $2,700

ROI Scenario (Factory Location):

• Avg. Sale Price (Can Soda): $1.50

• Weekly Sales Volume (High-Traffic): 400 cans

• Weekly Gross Revenue: 400 x $1.50 = $600

• Weekly Costs: Product (30% Cost of Goods): $180. Commission (20%): $120. Misc (5%): $30. Total Cost: $330.

• Weekly Net Profit: $600 – $330 = $270.

• Simple Payback Period: $2,700 / $270 = 10 weeks.

A Dixie Narco 501e can pay for itself in under 3 months in a prime location and then generate over $14,000 in annual net profit. This is the powerful financial engine that makes the Dixie Narco 501e so beloved by operators.

14. Frequently Asked Questions

Q: Can the Dixie Narco 501e vend bottles?
A: It is designed and optimized for 12-ounce cans. While some operators have jury-rigged it for small bottles using shims, it is not reliable or recommended. For bottles, choose a BevMax or stack machine designed for bottles.

Q: How do I know if my machine is MDB?
A: Look at the bill validator connector inside. A small, rectangular 8-pin connector is MDB. A large, round multi-pin connector is pre-MDB (“Logic Board”).::Dixie Narco 501e Drink Machine

Q: What’s the most important maintenance task?
A: Cleaning the condenser coils every 3 months. No other task has a bigger impact on the machine’s lifespan and performance.

Q: My machine is leaking water inside. What’s wrong?
A: The drain tube from the evaporator pan is likely clogged. This pan catches condensation from the cooling coils. Locate the clear plastic tube at the back inside the cabinet and clear the blockage.

Q: Is it worth buying a used Dixie Narco 501e “as-is”?
A: Only if you are mechanically inclined and get it for a very low price (<$500). Factor in the cost of an MDB conversion, potential refrigeration work, and parts. A refurbished unit with a warranty is almost always a better financial decision for an operator.::Dixie Narco 501e Drink Machine::Dixie Narco 501e Drink Machine

15. Conclusion: The Unbeatable Value Proposition

In an era of increasing technological complexity, the Dixie Narco 501e stands as a testament to the enduring power of simple, brilliant engineering. It does one job—vending cold canned soda—better and more reliably than arguably any machine before or since. For the vending operator, it represents the lowest-risk, highest-certainty asset you can deploy. Its low acquisition cost, negligible maintenance, and proven ability to generate strong cash flow in the right location create an ROI profile that is difficult for any new machine to match.

While it may lack the bells and whistles of glass-front merchandisers, the Dixie Narco 501e possesses something more valuable: timeless utility. It is the foundation upon which countless vending businesses have been built and thrived. For servicing the core, volume-driven segment of the market, the Dixie Narco 501e remains not just a viable choice, but often the optimal choice. It is a true workhorse, an icon of industry, and for the savvy operator, a perpetual profit center.
