1. Introduction: The BevMax 5800 and the Evolution of Glass Front Vending

The Dixie Narco BevMax 5800 stands as a landmark machine in the beverage vending industry. As part of the revolutionary BevMax series from Dixie-Narco (a Crane Company), the Dixie Narco BevMax 5800 introduced a new paradigm: a versatile, glass-front machine capable of reliably vending a wide variety of bottled and canned products without complex mechanical conversions. Before the Dixie Narco BevMax 5800, operators often needed different machines for cans and bottles. The Dixie Narco BevMax 5800 changed that with its innovative “wave tray” delivery system, allowing a single machine to seamlessly accommodate everything from 12-ounce cans to 20-ounce bottles and beyond.

The Dixie Narco BevMax 5800 quickly became synonymous with flexibility and high-volume sales. Its full-height glass front provides superior product visibility and merchandising appeal, making it a favorite in high-traffic locations where visual impact drives purchases. For operators, the Dixie Narco BevMax 5800 offered a solution to the growing consumer demand for bottled drinks, enabling a diversified product mix that maximized sales per square foot. This guide from VendingMachines.com will delve deep into every aspect of the Dixie Narco BevMax 5800, exploring why it remains a highly sought-after machine, how to operate and maintain it, and how it can deliver a powerful return on investment for modern vending routes.

2. Dixie Narco BevMax 5800 Specifications & Core Design

The Dixie Narco BevMax 5800 is engineered for capacity, cooling performance, and operational flexibility. Understanding its physical and technical specifications is key to leveraging its full potential.

Physical Dimensions & Layout:

• Height: 75 inches

• Width: 47 inches

• Depth: 35 inches

• Weight: Approximately 720 lbs (empty)

• Capacity: The “5800” designation hints at its scale. It typically holds up to 587 cans in a full-can configuration, or a mixed configuration of bottles and cans. It features 10 selectable columns, each with multiple product rows, for a wide variety of SKUs.

• Cooling System: A high-efficiency, self-contained forced-air refrigeration system with a top-mounted evaporator. This design ensures rapid chilling and consistent temperature (34°F – 38°F) throughout the cabinet, critical for product quality.

• Construction: Durable steel cabinet with a full-height, double-pane tempered glass front door. The insulated cabinet is designed to maintain cold temperatures efficiently.

• Power Requirements: Standard 115V, 60Hz, 15-amp dedicated circuit.

The Glass Front Advantage:
The defining visual characteristic of the Dixie Narco BevMax 5800 is its expansive glass front. This is not merely aesthetic; it’s a powerful sales tool. Products are fully visible and brightly lit, acting as their own advertisement. This merchandising capability can significantly increase impulse purchases compared to older, closed-front machines.

3. The BevMax 5800 Delivery System: How the Wave Tray Technology Works

The mechanical genius of the Dixie Narco BevMax 5800 lies in its delivery system. Unlike traditional stack-style machines, the Dixie Narco BevMax 5800 uses a patented “Wave Tray” or “Flex Tray” system that gently handles a diverse range of package sizes.

How the Wave Tray System Operates:

1. Product Loading: Beverages are loaded into vertical columns from the top. They rest on flexible, spring-loaded plastic trays (the “wave trays”) instead of fixed serpentine rails.

2. Customer Selection: A customer makes a selection via the keypad.

3. Tray Activation: The machine’s controller activates a motor for the specific column. A “picker arm” mechanism engages with the bottom wave tray in that column.

4. Gentle Ejection: The picker arm pulls the bottom tray forward, creating a downward slope. This action gracefully guides the bottom product out of the column while the trays above flex to accommodate the movement.

5. Product Delivery: The vended product slides down the delivery chute into the retrieval bin. The wave tray then retracts back to its original position, ready for the next cycle.

6. Sold-Out Sensing: An infrared sensor at the bottom of each column detects when the last product has been vended, allowing the machine to communicate “SOLD OUT” to the display.

Why This System is a Game-Changer for the Dixie Narco BevMax 5800:

• Multi-Width Capability: A single column in the Dixie Narco BevMax 5800 can be configured with different wave trays to accommodate different product widths (e.g., cans, 20oz bottles, 24oz bottles) without changing the column’s physical structure. This is managed through the machine’s programming.

• Gentle Handling: The wave tray cradles and guides products, minimizing the drops and impacts that can cause cans to fizz or bottles to crack, a common issue in stack machines.

• Reduced Jamming: The flexible, guided ejection is more forgiving of slightly misshapen bottles or labels than rigid systems.

4. Key Features & Capabilities of the Dixie Narco BevMax 5800

Beyond its delivery system, the Dixie Narco BevMax 5800 is packed with features designed for operator control and consumer satisfaction.

• Dynamic Column Sizing (DCS): This is the software counterpart to the wave tray hardware. Via the machine’s programming menu, the operator can define the physical width of each product in each column. The Dixie Narco BevMax 5800 uses this data to control the picker arm’s travel distance, ensuring precise product release. This allows a Dixie Narco BevMax 5800 to have cans, 16oz, 20oz, and 24oz bottles side-by-side in the same machine.

• Advanced Motor Control & Diagnostics: The machine features individual motor control for each column and sophisticated diagnostics that can report motor stall errors, helping operators quickly pinpoint mechanical issues.

• Enhanced Display & Messaging: Models are typically equipped with a backlit LCD display that can show price, credit, promotional messages (“ICE COLD”), and detailed sold-out information (e.g., “A1 SOLD OUT”).

• MDB Payment System Ready: The Dixie Narco BevMax 5800 comes standard with a Multi-Drop Bus (MDB) controller, ensuring seamless compatibility with modern bill validators, coin mechs, and most importantly, cashless payment systems.

• DEX/UCS Data Port: For route data collection, the Dixie Narco BevMax 5800 includes a standard DEX port, allowing operators to download detailed sales and inventory data to a handheld or via telemetry.

5. Comparing the Dixie Narco BevMax 5800 to Other Models

It’s helpful to understand where the Dixie Narco BevMax 5800 fits within the broader vending landscape.

• Vs. Dixie Narco Stack Machines (E.g., 501E): Traditional stack machines are less expensive and simpler but are generally limited to one package type per machine (cans OR bottles) and have less product visibility. The Dixie Narco BevMax 5800 offers far greater flexibility and merchandising power.

• Vs. Newer BevMax Models (BevMax 4, BevMax 5): Newer generations offer improved energy efficiency, more digital features, and enhanced diagnostics. However, the Dixie Narco BevMax 5800 remains a tremendously reliable and cost-effective platform, especially in the refurbished market. The core wave tray technology is proven across generations.

• Vs. Royal Vision/Glass Front Machines: Competing glass front models exist, but the Dixie Narco BevMax 5800 is often praised for the robustness of its wave tray system and the widespread availability of parts and service knowledge.

6. Benefits of Choosing a Dixie Narco BevMax 5800 for Operators

For vending business owners, the Dixie Narco BevMax 5800 delivers tangible operational and financial advantages.

• Maximum Product Mix Flexibility: The #1 benefit. The ability to stock exactly what a location wants—premium water, craft sodas, energy drinks, traditional cans—all in one Dixie Narco BevMax 5800 eliminates the need for multiple machines and captures more sales.

• Superior Merchandising & Increased Sales: The glass front drives impulse buys. Studies show visible products sell better. The Dixie Narco BevMax 5800 turns your inventory into a dynamic display.

• High Capacity & Reduced Service Frequency: With nearly 600 can capacity, a well-placed Dixie Narco BevMax 5800 can often go a full week or more between service visits, optimizing route efficiency and labor costs.

• Proven Reliability & Strong Parts Support: As an industry workhorse, the mechanical systems of the Dixie Narco BevMax 5800 are well-understood. A vast network of distributors stocks every part, from wave trays and picker arms to control boards.

• Excellent ROI Potential: Its ability to command higher prices for bottled products and drive higher volume sales makes the Dixie Narco BevMax 5800 a high-revenue asset that pays back its investment reliably.

7. Benefits for Location Hosts and Consumer Experience

• Modern, Attractive Amenity: A clean, well-lit Dixie Narco BevMax 5800 enhances a break room or lobby, making the location look more professional and caring about visitor/employee comfort.

• Wide Variety for Diverse Tastes: Hosts appreciate that one Dixie Narco BevMax 5800 can satisfy everyone, from the diet soda drinker to the bottled water enthusiast to the energy drink consumer.

• Consumer Trust & Satisfaction: The reliable, gentle vend mechanism of the Dixie Narco BevMax 5800 means customers get what they pay for, undamaged. The clear visibility allows them to see their selection before purchasing.

• Potential Revenue Source: For hosts on a commission plan, the high sales volume generated by a Dixie Narco BevMax 5800 can create a meaningful passive income stream.

8. Installation, Setup, and Initial Programming of Your Dixie Narco BevMax 5800

Critical Installation Steps:(Dixie Narco 5800 BevMax)

1. Site & Power: Place on a solid, level floor with 4-6 inches of clearance on all sides for airflow. Use a dedicated 115V outlet. Proper leveling is absolutely essential for the wave trays to function correctly. Use a level on the cabinet frame.

2. Cooling Cooldown: Once plugged in, allow the Dixie Narco BevMax 5800 to cool for at least 4-6 hours (preferably overnight) before loading any product. This ensures the refrigeration system is at peak efficiency and prevents condensation on warm drinks.

3. Payment System Installation: Install your MDB bill validator and coin mech, ensuring connectors are secure.

Initial Programming (A Simplified Overview):
Access the programming menu by unlocking the service door and pressing the programming button.

1. Set Column Pricing: Navigate to the price menu. You can set individual prices for each column.

2. Configure Dynamic Column Sizing (DCS): This is crucial. For each column, you must program the “product width” or “can size” setting to match what is physically loaded (e.g., “CAN” for 12oz, “16OZ,” “20OZ,” “24OZ”). An incorrect DCS setting is a common cause of jams in the Dixie Narco BevMax 5800.

3. Set Date/Time: For accurate DEX data.:::Dixie Narco 5800 BevMax

4. Load & Test: Load a few products in different columns. Use the manual test mode to vend from each column, verifying the picker arm engages and retracts smoothly and the product delivers cleanly.

9. Loading, Servicing, and Preventative Maintenance for the Dixie Narco BevMax 5800

Routine Service (During Restocking):

• Check DEX data to plan your product mix.

• Load products from the top, ensuring they are aligned and seated properly on the wave trays. Do not force items.

• Visually inspect each column for damaged or misaligned wave trays.

• Clean the delivery bin and glass front.

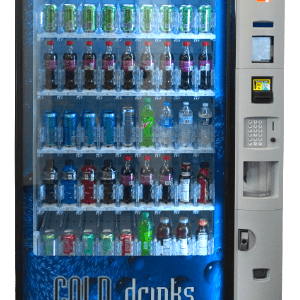

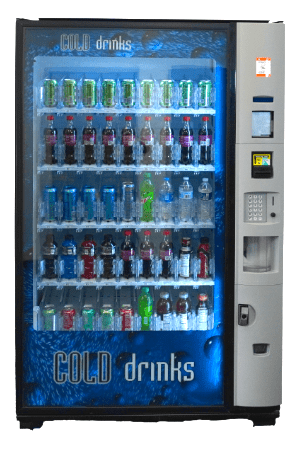

Dixie Narco 5800 BevMax

Dixie Narco 5800 BevMax

Dixie Narco 5800 BevMax

Dixie Narco 5800 BevMax

Preventative Maintenance Schedule:

• Monthly: Wipe down the interior and exterior. Check door gaskets for a proper seal.

• Quarterly (MANDATORY): Clean the condenser coils. Located behind the lower front grill or at the back. Use a coil brush and vacuum. Dirty coils are the primary cause of cooling failure in the Dixie Narco BevMax 5800. Also, inspect the evaporator fan inside the cabinet to ensure it’s running.

• Semi-Annually: Inspect all wave trays for cracks or warping. Check the picker arms and guide rails for wear or debris. Lubricate moving parts on the delivery bin flap with a tiny amount of food-grade silicone spray.:::::Dixie Narco 5800 BevMax

• Annually: Consider a professional check of the refrigeration system pressure and electrical connections.

10. Troubleshooting Common Issues with the Dixie Narco BevMax 5800

• Product Jams / “Make Another Selection” Error:

  • Cause 1: Incorrect DCS Setting. The machine is trying to vend a 20oz bottle but is programmed for a can width.:::Dixie Narco 5800 BevMax

  • Cause 2: Damaged or warped wave tray.

  • Cause 3: Misaligned picker arm or foreign object in the column.

  • Fix: Verify and correct DCS programming. Inspect the column for physical obstructions. Replace damaged trays.::::Dixie Narco 5800 BevMax

• Warm Drinks / Poor Cooling:

  • Cause 1: Dirty condenser coils.

  • Cause 2: Failed evaporator or condenser fan.

  • Cause 3: Low refrigerant or failing compressor.

  • Fix: Clean coils first. If problem persists, listen for fans running. Professional service may be needed for refrigerant issues.::::Dixie Narco 5800 BevMax

• Column Not Vending / Motor Stall Error:

  • Cause: Motor failure, broken picker arm gear, or a severe physical jam.

  • Fix: Clear any jam. Use test mode to try the motor. If it hums but doesn’t move, the gearbox may be stripped. Replacement motors/gearboxes are standard parts for the Dixie Narco BevMax 5800.

• Payment System Not Working:

  • Cause: Loose MDB harness, incorrect installation, or faulty validator.

  • Fix: Power down, reseat all connections, and reboot. Test with known-good currency.

•

11. Modernizing Your Dixie Narco BevMax 5800: Cashless, Telemetry & Energy Upgrades

Even an older Dixie Narco BevMax 5800 can be brought into the 21st century.

1. Cashless Vending Kit: Adding a credit/debit card reader (e.g., Nayax, Cantaloupe) is the single most impactful upgrade. It plugs directly into the MDB port of the Dixie Narco BevMax 5800. Expect a 20-40% sales lift.:::Dixie Narco 5800 BevMax

2. Telemetry Module: Most cashless systems include cellular telemetry, providing real-time sales data, machine health alerts (temperature, door open), and remote management capabilities for your Dixie Narco BevMax 5800.

3. LED Lighting Retrofit: Replacing the fluorescent tubes with LED light bars reduces energy draw, eliminates ballast hum, and provides brighter, more consistent lighting for your Dixie Narco BevMax 5800 display.

4. Energy Management: Devices like the VenDen Energy Guard can optimize the compressor cycle of your Dixie Narco BevMax 5800, saving significant electricity during off-hours without affecting product temperature.::::Dixie Narco 5800 BevMax

12. The Refurbished Dixie Narco BevMax 5800 Market: A Smart Investment

A professionally refurbished Dixie Narco BevMax 5800 offers exceptional value.

• Process: A quality refurbishment includes: complete disassembly/cleaning, repainting, condenser coil cleaning/replacement, replacement of worn wave trays and picker arms, installation of a new control board (if needed), LED lighting upgrade, and full testing.

• Warranty: Reputable sellers offer warranties (often 1 year+), providing peace of mind unmatched by an “as-is” purchase.

• Cost Savings: A refurbished Dixie Narco BevMax 5800 typically costs 40-60% less than a new equivalent model, dramatically improving your ROI.”:::Dixie Narco 5800 BevMax

13. Cost Analysis and ROI for the Dixie Narco BevMax 5800

Sample Investment (Refurbished & Upgraded):

• Refurbished Dixie Narco BevMax 5800: $3,500 – $4,500

• Cashless Kit with Telemetry: $700 – $900

• Total Investment: ~$4,500

ROI Scenario:

• Location: 250-person manufacturing plant.

• Avg. Sale Price (Mix of Cans/Bottles): $2.25

• Weekly Sales Volume: 300 items

• Weekly Gross Revenue: 300 x $2.25 = $675

• Weekly Costs (Product 40%, Commission 15%, Misc 5%): ~$405

• Weekly Net Profit: $270

• Simple Payback Period: $4,500 / $270 = ~17 weeks (approx. 4 months).

This demonstrates the powerful earning potential of a well-placed Dixie Narco BevMax 5800.

14. Frequently Asked Questions (FAQ) About the Dixie Narco BevMax 5800

Q: Can the Dixie Narco BevMax 5800 vend glass bottles?
A: Yes, with caution. You must use the correct wave trays and DCS settings, and ensure the delivery chute is clean and clear. Many operators avoid glass due to breakage risk.

Q: How do I change a product mix in my Dixie Narco BevMax 5800?
A: 1) Physically load the new product. 2) Crucially, reprogram the DCS setting for that column to match the new product’s width. 3) Update the price if necessary.

Q: What’s the most common mistake when setting up a Dixie Narco BevMax 5800?
A: Forgetting to program the Dynamic Column Sizing (DCS). This leads to immediate and persistent jams.

Q: Is the Dixie Narco BevMax 5800 energy efficient?
A: Older models are less so, but they can be improved with LED lighting and energy management devices. Newer models are built for efficiency.

Q: Where can I find parts for my Dixie Narco BevMax 5800?
A: Parts are widely available from online vending parts suppliers like VendParts, D&S Vending, and others. Specific part numbers for wave trays, motors, and boards are easily searchable.

15. Conclusion: Is the Dixie Narco BevMax 5800 Right for Your Vending Operation?

The Dixie Narco BevMax 5800 is not just a machine; it’s a strategic tool for growing a profitable beverage vending business. Its unmatched flexibility, high capacity, and strong consumer appeal make it an ideal choice for medium to high-traffic locations where product variety is key. While newer models exist, the Dixie Narco BevMax 5800 offers a proven, reliable, and cost-effective platform, especially in the refurbished market.

For the operator who wants to offer a premium drink selection, maximize sales per stop, and invest in a machine with a long service life, the Dixie Narco BevMax 5800 remains an outstanding choice. Its design has stood the test of time, and with modern cashless and telemetry upgrades, a Dixie Narco BevMax 5800 can be a connected, data-driven asset that delivers strong returns for years to come.

If you have a location that demands a versatile, high-volume beverage solution, the Dixie Narco BevMax 5800 should be at the top of your list. Its combination of performance, reliability, and proven profitability is a formula that continues to work.
