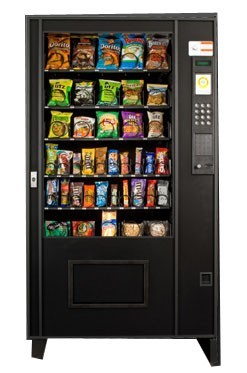

The Comprehensive Guide to the Refurbished AMS 39 Snack Machine

Table of Contents

1. Introduction: The American-Made Workhorse

2. Specifications & Design: Built for Efficiency & Service

3. The “Smart-Vend” System: Sensor-Driven Reliability

4. The Refurbishment Advantage: Renewing an Industry Favorite

5. Benefits for Vending Operators

6. Ideal Locations & Market Fit

7. Installation, Leveling & Power-Up Protocol

8. Programming & Configuration for Optimal Performance

9. Loading Strategies & Product Mix for 39 Selections

10. Preventative Maintenance & Daily Service Routines

11. Troubleshooting Common AMS 39 Issues

12. Modernization: Integrating Cashless & Telemetry

13. Deep Dive: The Refurbishment Process

14. Cost Analysis & Return on Investment (ROI)

15. Frequently Asked Questions (FAQ)

16. Conclusion: The Smart Choice for Reliable Snack Vending

---

1. Introduction: The American-Made Workhorse

In the competitive landscape of snack vending, the AMS 39 Snack Machine stands out as a paragon of American engineering and pragmatic design. Manufactured by Automatic Merchandising Systems (AMS), now part of the Crane Merchandising Systems family, the Model 39 earned its sterling reputation not through flashy aesthetics, but through unwavering reliability, intelligent technology, and operator-friendly serviceability. Its iconic blue and silver cabinet became a familiar and trusted sight in break rooms across the continent.

The refurbished AMS 39 Snack Machine represents one of the most compelling value propositions in the vending industry today. By choosing a professionally refurbished unit, operators gain access to this proven platform—renowned for its gentle handling of product and sophisticated diagnostic capabilities—at a fraction of the cost of a new machine. A quality refurbishment doesn’t just clean and paint; it renews the machine’s core systems, updates its electronics, and provides a warranty-backed assurance of performance. This guide from VendingMachines.com is the ultimate resource for operators, technicians, and location managers seeking to understand, deploy, and profit from the enduring excellence of the refurbished AMS 39 Snack Machine.

2. Specifications & Design: Built for Efficiency & Service

The AMS 39 Snack Machine is engineered with a clear focus on maximizing uptime and simplifying the operator’s job. Its design reflects a deep understanding of the vending route’s daily challenges.

Physical Dimensions & Layout:

• Height: 72 inches

• Width: 38.5 inches

• Depth: 34.5 inches

• Weight: Approximately 550 lbs (empty)

• Capacity: The model number “39” denotes its 39 selectable product spirals, typically arranged in a 3-column by 13-row configuration. This tall, narrow format offers a high selection count in a standard-width cabinet. Total capacity ranges from 175 to 220 snack items, depending on product sizing.

• Vend Mechanism: Utilizes individual DC motors and plastic helical spirals for each selection, similar to other high-quality machines, but integrated with AMS’s proprietary “Smart-Vend” sensor system.

• Construction: Durable, all-steel welded cabinet with a textured powder-coat finish, famously in a two-tone blue and silver or solid blue scheme. The design is robust and functional.

• Display: Features a prominent vacuum-fluorescent display (VFD) or backlit LCD that provides clear, multi-line messages—a hallmark of the AMS user interface.

• Power: 115V, 60Hz, 10-amp circuit.

Design Philosophy: Logic and Accessibility.
Every aspect of the AMS 39 is designed to reduce service time and guesswork. The full-height door provides complete access. The logic board is centrally located and clearly labeled. The wiring harness is organized, and components are modular. It’s a machine built to be understood and repaired quickly.

3. The “Smart-Vend” System: Sensor-Driven Reliability

What truly set the AMS 39 Snack Machine apart from its contemporaries was its innovative “Smart-Vend” electronic monitoring system. This was not merely a control board; it was an early form of machine intelligence designed to prevent lost sales and diagnose problems.

How Smart-Vend Works:

1. The Sensor: Each of the 39 spirals has a dedicated optical sensor (photo-eye) positioned at the back of the spiral, just behind where the product sits.

2. The “Product Present” Check: When a customer makes a selection, the AMS 39 logic board first checks the sensor for that spiral. If the sensor does not detect a product blocking its beam, the machine knows the spiral is empty. It will not attempt to vend, will not charge the customer, and will immediately display “SOLD OUT” on that selection button and the main display.

3. The Vending Sequence: If the sensor confirms a product is present, the board activates the spiral motor for a timed cycle.

4. The “Vend Verification” Check: As the product leaves the spiral, it breaks the sensor beam again. The board expects to see this second break as confirmation that a product has actually been dispensed.

5. Error Handling: If the motor runs but the sensor does not detect the product leaving (indicating a jam or motor failure), the board logs an error, can alert the customer, and will often disable that selection to prevent further lost sales.

Benefits of This System:

• Eliminates “False Vends”: Customers are never charged for an empty selection.

• Dramatically Reduces Service Calls: Route drivers arrive knowing exactly which spirals are empty and which have mechanical faults, thanks to error logs and sold-out lights.

• Builds Customer Trust: The reliability of the transaction enhances the vending service’s reputation.

• Provides Rich Data: The system tracks inventory and errors, forming the basis for advanced reporting.

4. The Refurbishment Advantage: Renewing an Industry Favorite

Purchasing a refurbished AMS 39 Snack Machine is a strategic business decision, not a compromise. A high-quality refurbishment conducted by specialists breathes new life into the machine, addressing the wear points of age while preserving its core intelligence.

What a Top-Tier Refurbishment Entails:

• Complete Disassembly & Evaluation: The machine is stripped to its frame. Every mechanical and electrical component is inspected and tested against performance specifications.

• Cabinet Restoration: The cabinet is sanded, treated for rust, and repainted with industrial-grade enamel, often in the original iconic blue or a custom color.

• Mechanical Overhaul: All 39 spiral motors are tested under load. Weak or noisy motors are replaced. Every single “Smart-Vend” optical sensor is cleaned, aligned, and tested. Worn spirals and gears are replaced.

• Electronics Renewal: The logic board is tested and repaired if needed. Power supplies are recapped or replaced. All wiring harnesses are inspected for fraying.

• Payment System Modernization: The machine is updated to full MDB (Multi-Drop Bus) compliance, ensuring compatibility with modern bill validators, coin mechs, and cashless systems.

• Reassembly & Burn-In Testing: The machine is meticulously rebuilt. Each selection is tested for dozens of consecutive vends. The Smart-Vend system is validated. The machine undergoes a 48-72 hour “burn-in” period to ensure stability.

• Warranty: A reputable refurbisher provides a meaningful parts-and-labor warranty (often 6 months to 1 year), offering peace of mind that an “as-is” auction purchase cannot.

5. Benefits for Vending Operators

The refurbished AMS 39 Snack Machine delivers a powerful package of operational benefits:

• Unmatched Diagnostic Intelligence: The Smart-Vend system is a force multiplier for your service efficiency. You arrive on-site knowing the machine’s status, turning a potential 30-minute diagnostic hunt into a 5-minute targeted repair.

• Exceptional Reliability & Uptime: The combination of simple mechanics and proactive error detection minimizes catastrophic failures. The machine keeps generating revenue.

• Excellent Return on Investment (ROI): The low acquisition cost of a refurbished unit, combined with its high reliability and low maintenance needs, leads to a fast payback period and strong ongoing profits.

• Gentle Product Handling: The spiral system is proven to be one of the most delicate on packaged goods, reducing damaged product returns and customer complaints.

• Easy to Service & Maintain: The modular design and clear diagnostics mean route drivers can handle most common issues, reducing dependence on costly senior technicians.

• Professional Data & Reporting: The machine provides detailed DEX data, enabling pre-kitting, precise inventory management, and data-driven product selection.

6. Ideal Locations & Market Fit

The AMS 39 is a versatile machine, but its 39-selection, high-capacity design makes it particularly well-suited for certain environments.

Prime Locations:

• Medium to Large Offices (75-300 employees): Its capacity matches the demand, and its professional operation is appreciated.

• Manufacturing & Warehouse Break Rooms: The rugged build and reliable transactions stand up to high-volume use.

• Hospitals & Medical Centers: The reliability is crucial for staff working long shifts. The clear diagnostics simplify service in a busy facility.

• Universities & Colleges: Student unions, library lounges, and dorm common areas.

• Government Buildings & Municipal Facilities: Where durability and accountability are valued.

• Transportation Hubs: Smaller airport terminals or bus stations.

Considerations: Its taller, narrower profile can be an advantage in spaces where width is limited but height is available.

7. Installation, Leveling & Power-Up Protocol

Proper installation is critical for the sensitive Smart-Vend system to function correctly.

1. Site Preparation: Choose a solid, level floor with a dedicated 115V outlet. Ensure adequate clearance for the service door to swing open fully.

2. Precision Leveling: This is non-negotiable. An unlevel machine will cause products to sit incorrectly in the spirals, confusing the optical sensors.

   • Use a machinist’s level on the internal frame shelf (the most reliable plane).

   • Adjust the front leveling legs until perfectly level in both directions.

3. Power Connection & Initialization: Plug the machine in. Observe the startup sequence on the display. The refurbished AMS 39 Snack Machine will typically run a self-check of its sensor grid.

4. Sensor Alignment Verification: As part of setup, use the machine’s diagnostic mode to confirm that all 39 optical sensors are properly aligned and reporting “Product Present” when empty and “Product Absent” when a test item is placed. This step is unique to AMS machines and crucial for success.

8. Programming & Configuration for Optimal Performance

Programming the AMS 39 is logical, facilitated by its high-quality display.

Accessing Menus: Unlock the service door. Press the “Mode” or “Program” button on the keypad or logic board.

Key Setup Steps:

1. Set Date/Time: Foundational for accurate DEX data.

2. Name Your Selections: A standout feature. You can program a custom name (up to ~8 characters) for each of the 39 spirals (e.g., “DORITOS,” “SNICKERS,” “POP-TART”). This displays during customer selection, enhancing the user experience.

3. Price Setting: Set prices individually, by row, or by group. The 3-column layout allows for clear price zoning (e.g., Column 1: $1.00, Column 2: $1.25, Column 3: $1.50).

4. Configure Smart-Vend Parameters: Adjust sensor sensitivity if needed (rarely required after a proper refurbishment). Review and clear any existing error logs.

5. Test Mode: Run a full vend test on each spiral to ensure mechanical and sensor operation are in sync.

9. Loading Strategies & Product Mix for 39 Selections

With 39 choices, you have the luxury of variety. A strategic mix is key to maximizing sales.

The 3-Column Strategy (13 rows each):

• Column 1 (Left): The “Chip & Salty” Column. Dedicate this to the full spectrum of salty snacks: Lay’s, Doritos, Cheetos, Fritos, Pretzels, Popcorn, Sun Chips. Use multiple rows for top-selling flavors.

• Column 2 (Center): The “Core & Impulse” Column. This is for high-velocity, high-impulse items.

  • Rows 1-6: Chocolate Candy Bars (Snickers, Reese’s, Twix, Kit Kat, Milky Way).

  • Rows 7-10: Non-Chocolate Candy (Skittles, Starburst, Sour Patch).

  • Rows 11-13: Gum & Mints.

• Column 3 (Right): The “Premium & Sustenance” Column.

  • Rows 1-4: Pastries & Breakfast (Pop-Tarts, Muffins, Cereal Bars).

  • Rows 5-7: Cookies & Crackers.

  • Rows 8-10: Nuts & Trail Mix.

  • Rows 11-13: Health-Conscious & Premium (Beef Jerky, Veggie Chips, Gluten-Free options).

Loading Tip: Always push product firmly to the back of the spiral to ensure it breaks the optical sensor beam. This is critical for the “Product Present” detection.

10. Preventative Maintenance & Daily Service Routines

Route Driver Service:

• Review Error Log: Before anything else, check the machine’s diagnostic log via the display. It will tell you which spirals are sold out and which have vending errors.

• Data Collection: Download DEX data via a handheld or telemetry.

• Restock Based on Data: Focus on the sold-out spirals and fast movers identified in the log and DEX report.

• Sensor Lens Cleaning: Gently wipe the optical sensor lenses (small plastic windows at the back of each spiral) with a dry, soft cloth every few service cycles. Dust buildup can cause false “empty” readings.

Scheduled Maintenance:

• Monthly: Clean bill validator with a cleaning card. Vacuum loose debris from the bottom of the cabinet.

• Quarterly: Perform a more thorough interior cleaning. Check for and tighten any loose spiral mounts or motor connections.

• Annually: Conduct a full sensor diagnostic and alignment check. Inspect power supply capacitors for bulging or leakage.

11. Troubleshooting Common AMS 39 Issues

• “SOLD OUT” on a Full Spiral:

  • Cause: Dirty sensor lens, misaligned sensor, or a sensor failure.

  • Fix: Clean the sensor lens. Check that the product is fully seated against the sensor flag. Use the diagnostic mode to test the sensor’s output. Replace the sensor if faulty.

• Motor Runs, Product Jams, “VEND ERROR” Logged:

  • Cause: Worn motor coupler, damaged spiral, or product too large for the spiral.

  • Fix: Clear the jam. Replace the plastic motor coupler (a common, inexpensive part). Ensure you’re using the correct spiral size.

• Blank Display or Machine Unresponsive:

  • Cause: Blown fuse, faulty power supply, or main logic board failure.

  • Fix: Check and replace the fuse (located on the power supply or logic board). If the fuse blows again, there is a short circuit requiring technical diagnosis. A refurbished unit should have had its power supply validated.

• Bill Validator Not Accepting/Recognized:

  • Cause: On older non-MDB models, compatibility issues. On refurbished MDB units, a loose harness or dirty validator.

  • Fix: Ensure the validator is MDB-compatible with your machine’s board. Reseat all connections. Clean the validator.

12. Modernization: Integrating Cashless & Telemetry

A refurbished AMS 39 Snack Machine is an ideal candidate for integration into a modern, connected vending operation.

1. MDB Compliance is Key: Ensure your refurbishment included an MDB upgrade. This is the essential foundation.

2. Cashless Vending Kit: Installing a credit/debit card reader is straightforward. The AMS 39’s reliable vending and diagnostics pair perfectly with cashless, leading to higher transaction values and customer satisfaction. Choose a reader with a clear display that complements the machine’s own interface.

3. Cellular Telemetry: Adding a telemetry module (like those from Cantaloupe, Nayax, or 365 Retail Markets) unlocks the machine’s full potential. You get:

   • Real-Time Sales & Inventory Data: Know what’s selling, right now.

   • Predictive Restocking Alerts: Get notified when spirals are running low.

   • Machine Health Monitoring: Receive instant alerts for power outages, sensor faults, or door-open events.

   • Remote Diagnostics: Often, you can see sensor status and error codes from your computer, sometimes enabling a fix on the first visit.

13. Deep Dive: The Refurbishment Process

To appreciate the value, it’s important to understand what separates a true refurbishment from a simple cleaning.

Phase 1: Intake & Assessment. Machine is tagged, photographed, and tested for basic function. A detailed work order is created listing all required repairs and replacements.

Phase 2: Stripping & Cleaning. All components are removed. The empty cabinet is pressure-washed, sandblasted, and treated for rust. Every part—spirals, motors, sensors, shelves—is ultrasonically cleaned or washed by hand.

Phase 3: Mechanical Rebuilding.

• Motors are bench-tested for amp draw and RPM; failures are replaced.

• Every optical sensor is tested with a meter and light source.

• The gear train for each motor is inspected and worn gears replaced.

• All spirals are inspected for cracks and warping.

Phase 4: Electronic Renewal.

• Logic board is visually inspected for damaged traces and cold solder joints, then functionally tested.

• Power supply is recapped with new, high-temperature capacitors.

• Harnesses are repaired or replaced.

• MDB upgrade kit is installed if not already present.

Phase 5: Reassembly & Painting. Cabinet is painted in a spray booth. Machine is reassembled with renewed parts according to factory specifications.

Phase 6: Testing & Quality Assurance. The final, most critical phase. Machine undergoes:

• Sensor Grid Alignment Test.

• Individual Spiral Vend Test (50+ vends per spiral).

• Payment System Integration Test.

• DEX Data Output Test.

• 48-72 Hour Burn-In at operating temperature.

14. Cost Analysis & Return on Investment (ROI)

The financial case for the refurbished AMS 39 Snack Machine is exceptionally strong.

Sample Investment:

• Refurbished AMS 39 with MDB & Warranty: $2,400 – $3,000

• New Bill Validator & Coin Mech: $500

• Total Initial Investment: ~$3,000

ROI Scenario (150-Person Office Complex):

• Average Item Price: $1.75

• Weekly Sales Volume: 225 items

• Weekly Gross Revenue: 225 x $1.75 = $393.75

• Weekly Costs: Product Cost (40%): $157.50. Location Commission (20%): $78.75. Misc/Truck (5%): $19.69. Total Weekly Cost: $255.94

• Weekly Net Profit: $393.75 – $255.94 = $137.81

• Simple Payback Period: $3,000 / $137.81 = ~22 weeks (approx. 5.5 months).

After payback, this single refurbished AMS 39 Snack Machine generates over $7,100 in annual net profit. The combination of moderate cost and high, reliable performance creates an outstanding return.

15. Frequently Asked Questions (FAQ)

Q: Are parts for the AMS 39 still available?
A: Yes, abundantly. AMS machines were produced in huge numbers, and a vast aftermarket parts network exists. Everything from sensors and motors to logic boards and cosmetic parts is readily available from online vending suppliers.

Q: How does the Smart-Vend system handle very shiny or clear packaging?
A: Very shiny wrappers can sometimes reflect the sensor’s infrared light, causing a false “product present” reading. This is rare. AMS sensors are generally reliable, but if an issue occurs, adjusting the sensor’s angle or sensitivity in the programming menu can often resolve it.

Q: Can I convert a non-MDB AMS 39 to MDB?
A: Absolutely. MDB conversion kits are available. A quality refurbishment will include this upgrade. It involves replacing the main logic board and the payment system harnesses.

Q: Is the AMS 39 energy efficient?
A: For its generation, it is standard. It does not have advanced energy-saving modes like newer machines. However, its simple design (no large compressors, just motors and a board) means its base energy consumption is relatively low. An external plug-in timer can be used to power it down during closed periods for additional savings.

Q: What’s the most common repair?
A: The plastic motor coupler (the part connecting the motor shaft to the spiral) is the most frequently replaced item, as it’s a wear part designed to protect the more expensive motor from jams. Replacing it is a 60-second, sub-$5 fix.

16. Conclusion: The Smart Choice for Reliable Snack Vending

The refurbished AMS 39 Snack Machine is more than just a piece of used equipment; it is a strategic acquisition that delivers intelligent, reliable, and profitable vending performance. It represents the pinnacle of a design philosophy that prioritized the operator’s need for diagnostic clarity and the consumer’s demand for a flawless transaction. In an era of increasing machine complexity, the straightforward, sensor-driven logic of the AMS 39 remains brilliantly effective.

For the operator seeking to build or expand a route with minimal risk and maximum control, investing in a professionally refurbished AMS 39 Snack Machine is a decision that pays dividends in reduced service time, increased customer satisfaction, and robust bottom-line profitability. It offers a rare combination of proven durability, innovative technology (even by today’s standards), and outstanding value. By choosing a refurbished unit, you are not buying the past; you are investing in a renewed platform of proven excellence, ready to deliver dependable service for years to come. It is, quite simply, one of the smartest choices in snack vending.
